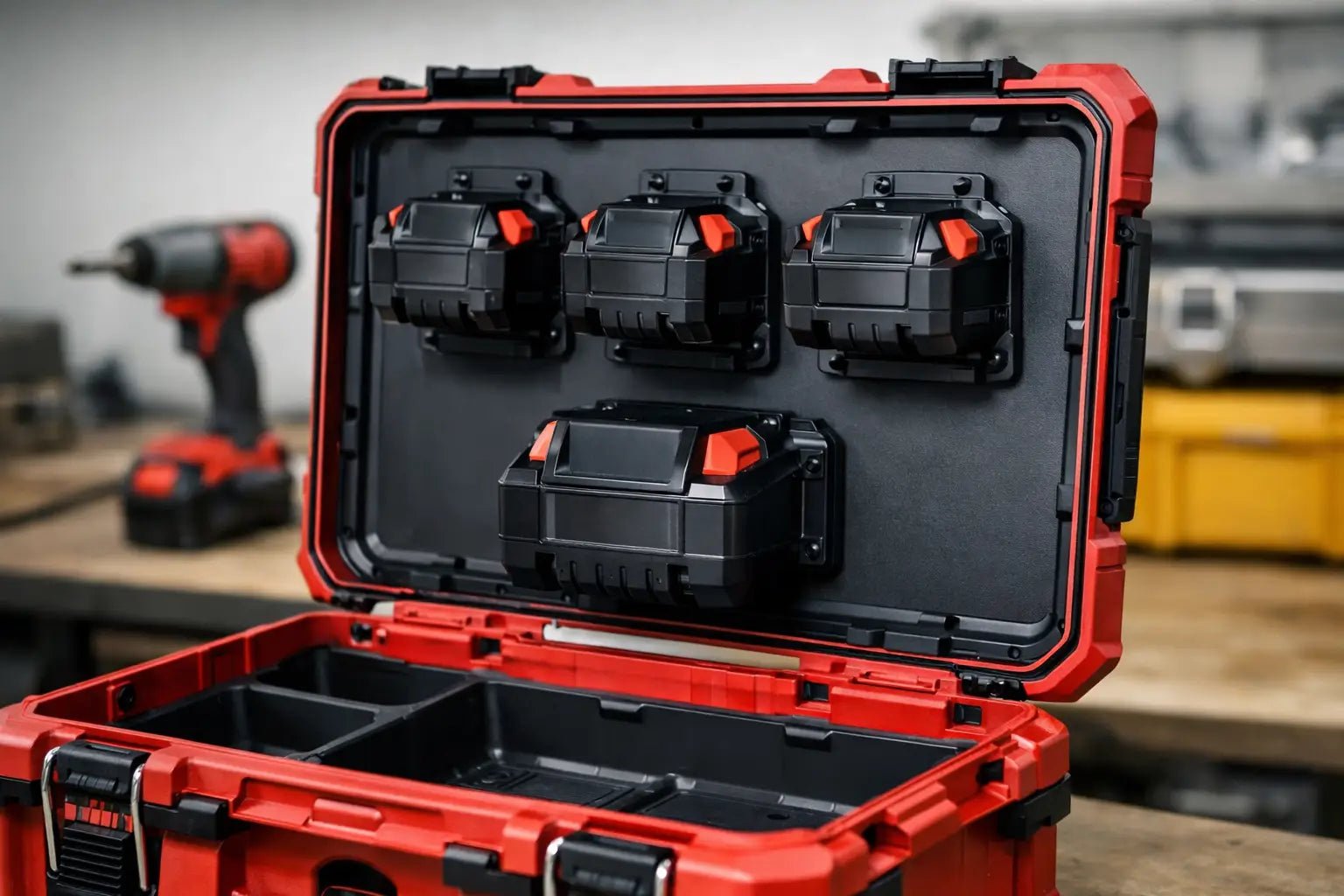

A Packout box earns its place when every item has a defined location and can be reached without digging through loose gear. Choosing to mount batteries inside a Packout lid puts commonly used power packs at eye level the moment the case opens. Done correctly, it turns otherwise unused lid space into fast-access storage without interfering with the seal, the contents below, or the way the box stacks and carries.
The key is not simply attaching battery holders to plastic. A useful setup starts with the right battery position, enough clearance for the lid to close, and mounts designed to retain the battery through transport. Whether the box supports cordless tools for the jobsite, garage, range bench, or mobile repair kit, the lid should make the next task faster, not create a new point of failure.
Why Mount Batteries Inside a Packout Lid?
Tool batteries are compact, valuable, and easy to misplace when they are stored loose. They also tend to end up under hand tools, chargers, or hardware right when a fresh battery is needed. Lid-mounted storage separates batteries from the main compartment and makes an immediate visual inventory possible.
This approach works especially well in a shallow organizer or a larger Packout configured around a specific cordless platform. Keep matched batteries, a charger, and the related tool family together, and the case becomes a dedicated grab-and-go kit. A compact drill-and-driver box, inspection kit, electrical service case, or range maintenance setup can all benefit from this layout.
There is a trade-off. Batteries add weight high on the case, and every holder reduces available clearance inside the box. That makes lid storage best for batteries that are used frequently and fit a deliberate layout. It is not the place to load every spare battery you own.
Start With Lid Clearance, Not the Holder
Before selecting a mount or drilling a hole, measure the actual space between the underside of the closed lid and the highest item in the case. This is the dimension that decides whether the layout works. Do not estimate it from the outside of the box or assume that a low-profile holder will clear your tools.
Set the intended batteries in their holders, place them against the lid, and close it gently with the main compartment loaded as it will be used. Check clearance at multiple positions. Many cases have interior ribs, molded contours, or a shallow area near the perimeter that changes the available depth.
Also inspect where the lid seal contacts the case body. Nothing mounted near the edge should interfere with that sealing surface. A Packout lid may still latch with an obstruction present, but a distorted seal, stressed hinge, or lid that needs to be forced shut is not a finished setup.
Account for Battery Height and Release Direction
Battery mounts need more than body clearance. The battery must slide into the holder and release without striking the lid wall, another mount, or gear in the lower compartment. For rail-style cordless battery mounts, leave enough room to engage the pack fully and to use the release tabs with a gloved or dirty hand.
Check the battery in every position, not just the first one. Larger-capacity packs may be taller or longer than standard packs, even when they share the same connection format. If the kit regularly carries several battery sizes, design around the largest pack you intend to transport.
Choose a Layout That Carries Well
A centered, symmetrical layout usually carries better than a row of batteries concentrated near one corner. The goal is to avoid turning the open lid into a heavy, awkward panel that pulls backward on the hinges or makes the case feel unstable when it is opened upright.
For two batteries, placing one on each side of the lid centerline often provides a clean balance. For three or more, use the center area thoughtfully and keep enough spacing between holders to grip each battery. The handle, latches, hinge structure, lid ribs, and any interior label area may limit the usable footprint.
Think about access order as well. The battery that gets changed most often should be easiest to reach. If one pack is a backup, it can occupy a less central position. A well-organized lid does not require you to remove one battery just to access another.
Avoid placing holders where they block a mounted charger cord, paperwork pocket, bit holder, or other lid accessory. Packout organization works best when each section has one job. Trying to force every accessory onto the lid creates the same clutter you were trying to eliminate.
Use Holders Made for the Battery Platform
A battery holder must match the battery platform it carries. The rails, locking geometry, and retention points differ by manufacturer and often by product generation. Generic clips and improvised blocks may hold a pack on the bench but loosen under vibration, temperature changes, or repeated removal.
Purpose-built 3D-printed battery mounts offer an advantage when they are designed around the actual battery interface and the Packout lid environment. PETG is a practical material for this use because it handles normal shop conditions well and is better suited to functional storage parts than brittle display-grade plastics. The mount still needs proper geometry, suitable wall thickness, and a secure fastening method.
Retention matters most when the case is transported. Test the mounted battery with the lid open, closed, vertical, and gently shaken. It should seat positively, release intentionally, and remain stable without rattling. If the battery can slide freely or work its way loose, revise the mount position or retention method before relying on it in the field.
Fastening Methods: Permanent vs. Reversible
The fastening method depends on how permanent the layout needs to be and how much load it will carry. Mechanical fasteners are generally the better choice for battery storage because they provide predictable strength and can be inspected over time. When using screws, choose locations that avoid the lid seal, hinge components, and exterior features.
A through-bolted installation with appropriately sized washers can spread the load across the lid and reduce the chance of a mount pulling through. The exterior hardware must remain low profile so it does not interfere with stacking, sitting flat, or locking into adjacent Packout components. Do not overtighten fasteners. Excessive clamping force can deform a plastic lid or damage the holder.
High-bond adhesive can be useful for very light accessories or temporary layout testing, but batteries create repeated pull loads each time they are removed. Adhesive performance also depends on clean surfaces, temperature, surface texture, and cure time. If you use adhesive at all, treat it as a deliberate choice with known limits rather than a shortcut around a better mechanical installation.
Before final installation, make a paper template or mark the holder positions with painter's tape. Open and close the lid, check hand clearance, and confirm the layout against the case contents. A few minutes of layout work prevents a misplaced hole from becoming permanent.
Build the Case Around a Real Workflow
The most useful battery lid setup supports the way you already work. A mobile drill kit may carry two batteries in the lid, a charger in the main compartment, and tool-specific bits in a small organizer. A field repair case may reserve the lid for batteries while the lower compartment holds the tool, consumables, and measuring equipment in fitted positions.
Consider how batteries enter and leave the kit. If depleted packs are normally placed in a separate charging area, dedicate one lid position as the ready spare and keep discharged batteries out of the finished case. If the case is used away from power for long periods, label or orient packs so charged and used batteries are easy to distinguish.
This is also where custom organization earns its value. A purpose-built holder keeps a battery from roaming around the case, but the rest of the layout should protect the tools and supplies that support it. When batteries, tools, bits, and task-specific accessories each have a defined place, setup and cleanup become quicker and more consistent.
Inspect the Setup After Real Use
After the first few trips, inspect the lid mounts and hardware. Look for loosened screws, stress marks around mounting holes, cracked plastic, interference marks, or a battery that has begun to rattle. Recheck the lid closure with the kit fully loaded, especially after adding a larger battery or changing the lower-compartment organization.
A Packout lid is valuable storage space, but it should remain a working part of the case. Keep the load reasonable, preserve full closure, and choose mounts that match the battery platform and the job. The result is not just a cleaner box. It is a tool kit that opens ready to work, with the power you need visible, protected, and exactly where it belongs.
